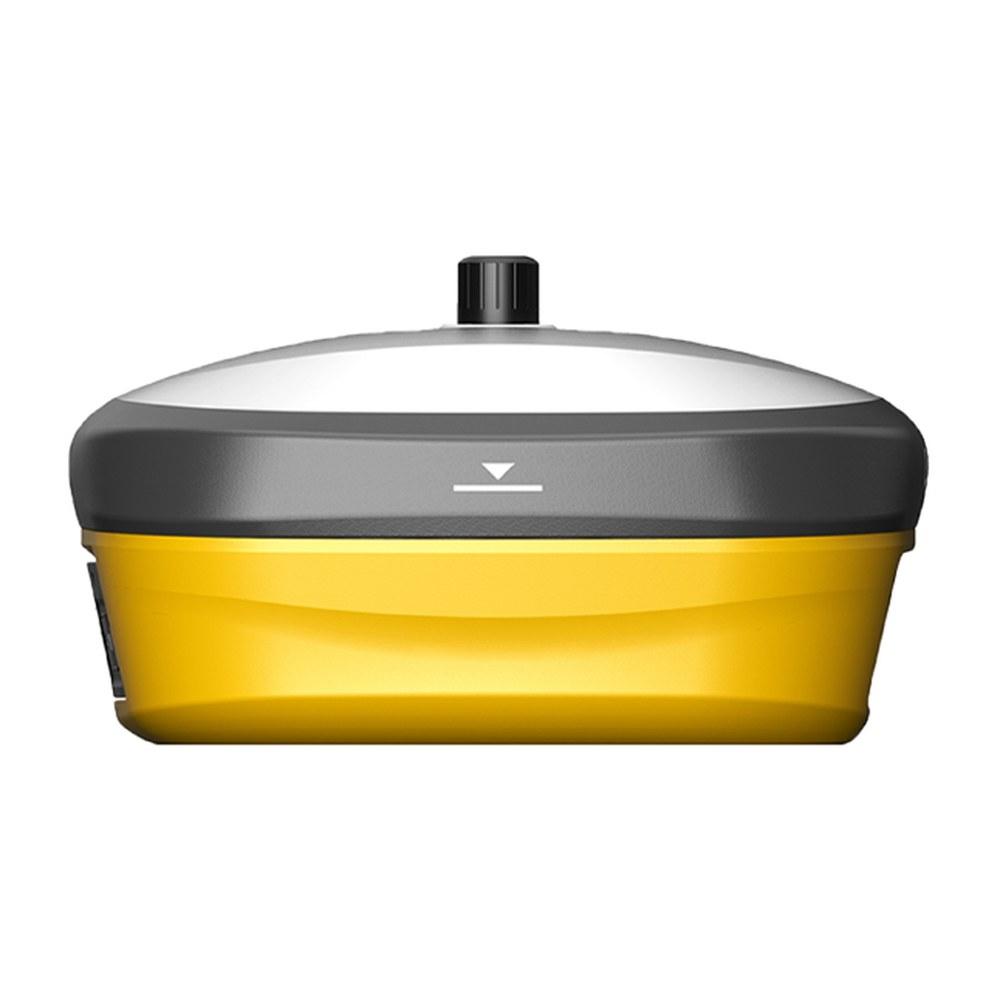

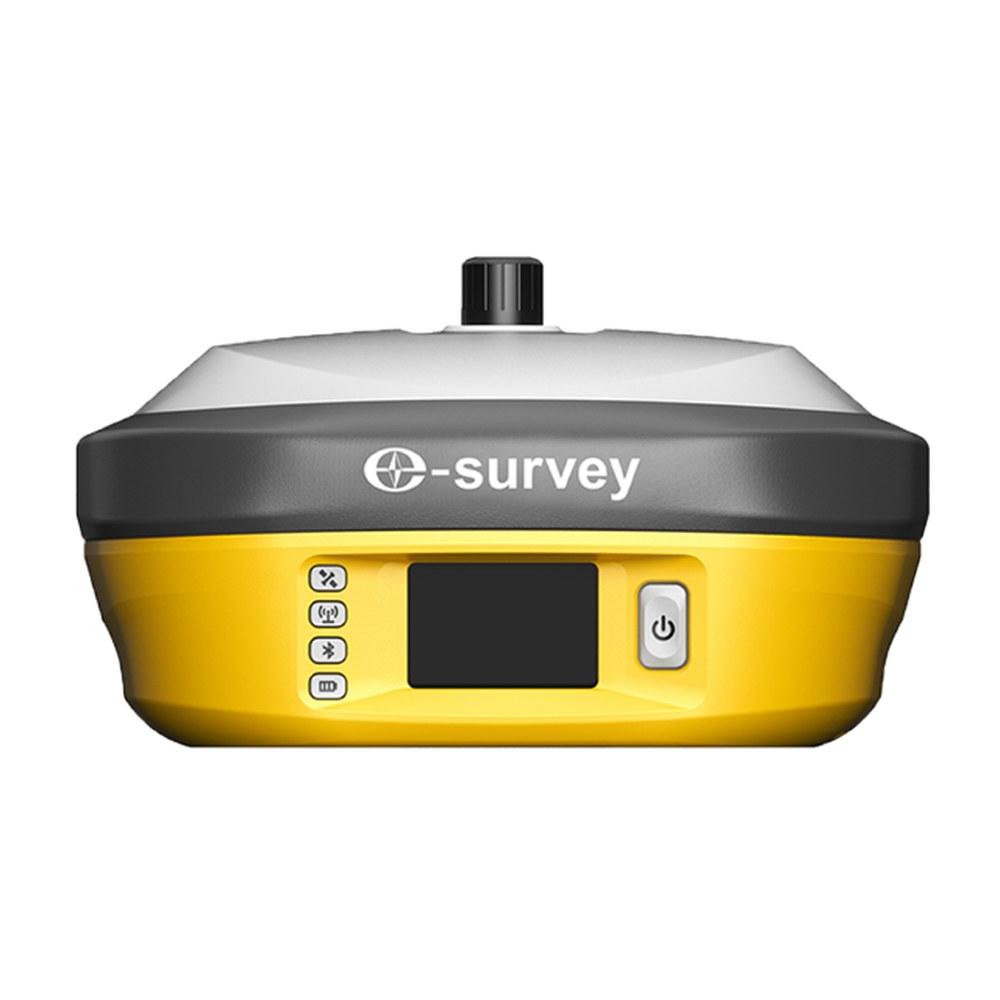

E-Survey E800 GNSS RTK Receiver

Model E800

E-Survey E800 GNSS RTK Receiver

The E800 is the base station receiver of the range. Its 5 W internal radio reaches 8 to 10 km in normal conditions, so on most jobs you leave the external radio, its battery and its mast in the store. The 13600 mAh battery runs up to forty hours as a rover, there is 32 GB of memory for long static sessions, and the 1.45 inch colour touchscreen lets you set base or rover mode on the tripod without a controller. IP67.

IMU

MEMS tilt survey to 60 degrees

Size

154 x 76 mm

Weight

1500 g

Battery

13600 mAh built in, up to 40 hours as rover

Display

1.45 inch colour touchscreen

Storage

32 GB

Channels

1408

Protection

IP67

RTK accuracy

Horizontal 8 mm + 1 ppm, vertical 15 mm + 1 ppm RMS

Constellations

GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS, L-Band

Initialisation

Under 5 s, reliability over 99.9%

Internal radio

TX and RX, 5 W, 8 to 10 km typical, up to 15 km

Static accuracy

Horizontal 2.5 mm + 0.1 ppm, vertical 3.5 mm + 0.4 ppm RMS

Currently in stock
