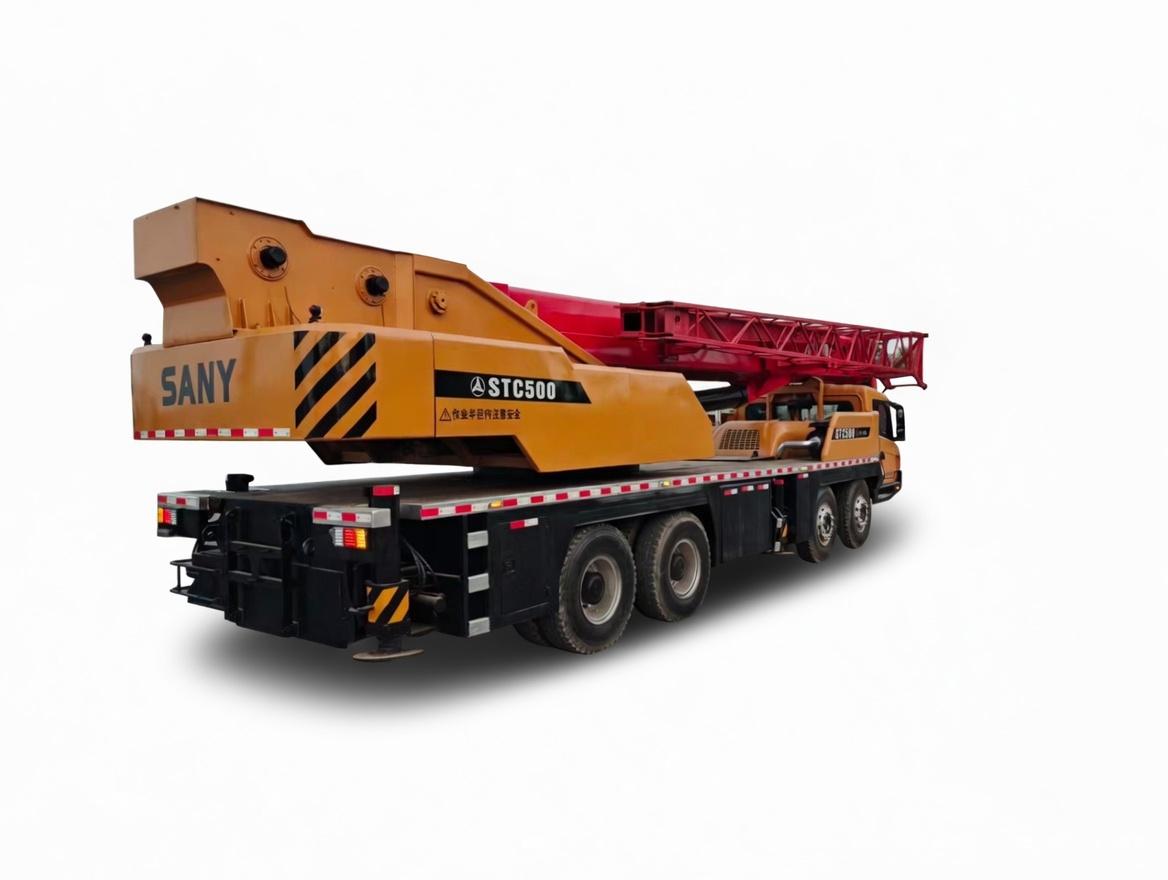

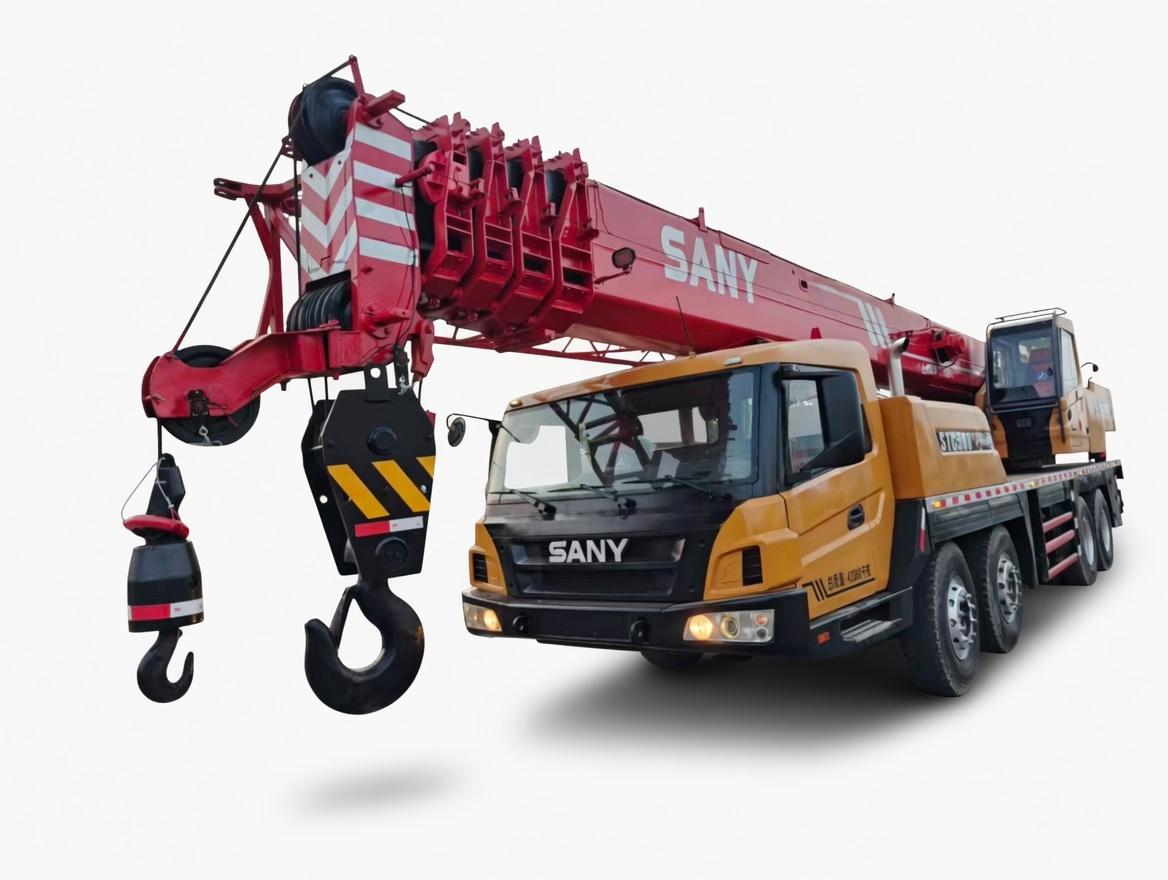

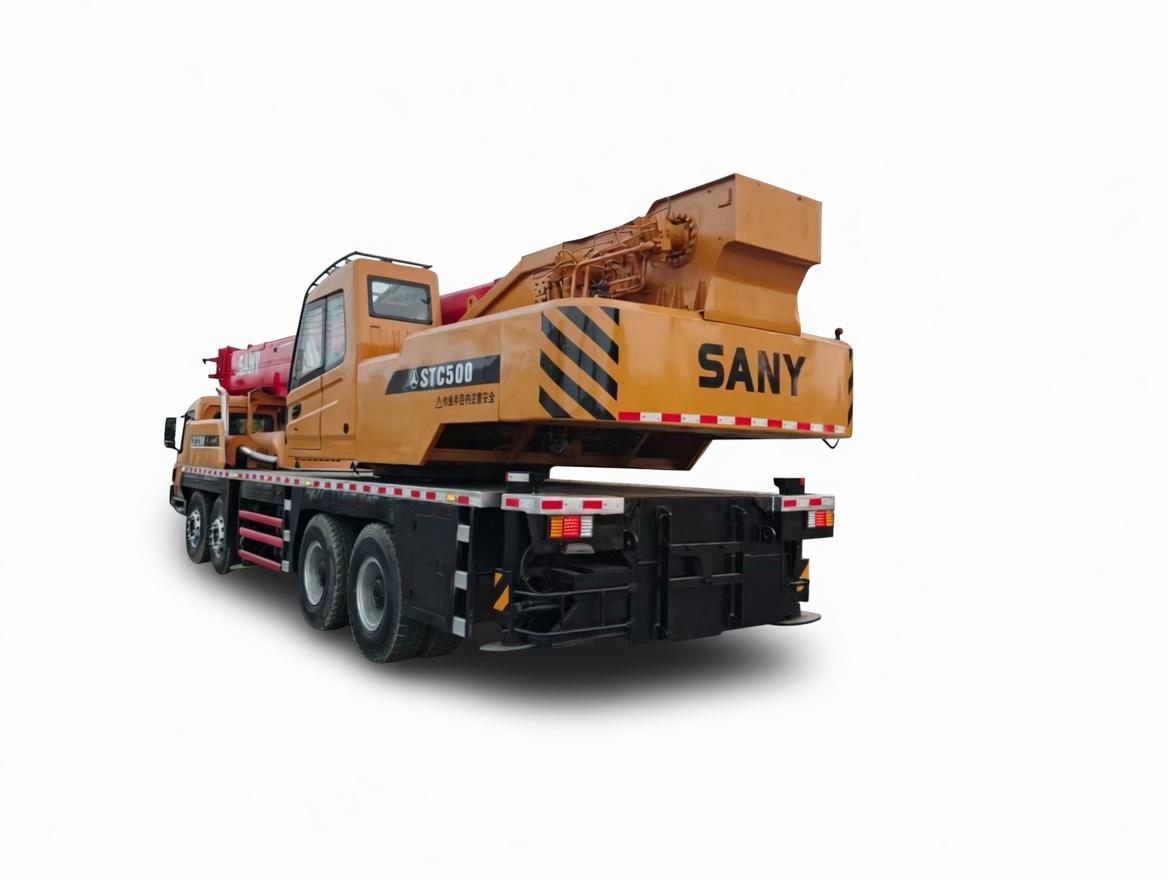

SANY STC500 50 Tonne Truck Crane

Model STC500

SANY STC500 50 Tonne Truck Crane

The STC500 is the crane that covers most of what a contractor in this market actually lifts: fifty tonnes at the hook, a five section boom from 11.3 to 43.5 metres, and 59.5 metres of lift height once the sixteen metre jib is fitted. It drives to site at up to 85 km/h on an eight by four chassis rather than arriving on a low loader, which is the difference between a lift that happens on the day and one that waits a week. Weichai 370 horsepower, 1,800 kilonewton metres of lifting moment, boom elevation from minus two to eighty degrees.

Jib

9.5 m to 16 m

Boom

11.3 m to 43.5 m, 5 sections

Engine

Weichai, 276 kW / 370 hp, Euro 5

Chassis

8x4, four axle

Boom elevation

minus 2 to 80 degrees

Maximum travel speed

85 km/h

Maximum lifting height

59.5 m with the 16 m jib

Maximum lifting moment

1,800 kN·m

Maximum lifting capacity

50 tonnes

Currently in stock
